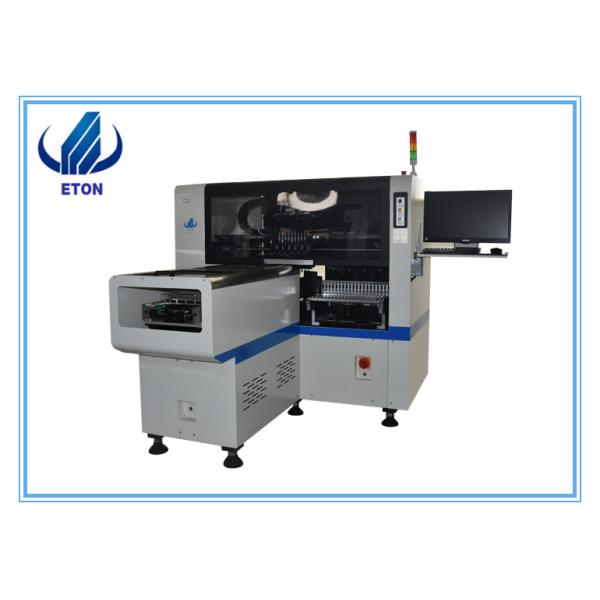

0.2mm Components 10 Nozzles 35000 CPH Pcb Mounting Machine

Brand Name : ETON

Model Number : HT-E6

Certification : SIRA.CCC.CE

Place of Origin : CHINA

MOQ : 1 Unit

Price : 25000-33000 USD

Payment Terms : T/T, L/C

Supply Ability : 50 Units per month

Delivery Time : 30 days

Packaging Details : vacuum wooden package

Warranty : 1 Year

Applicable components : 0402,0603

Name : SMT Pick and Place Machine

Application : SMD Production Line

Power supply : 380AC 50HZ

Condition : 100% Original

Product name : Place Machine\ LED Mounter\LED Assembly Machine

Contact Now

0.2mm Components 10 Nozzles 35000 CPH Pcb Mounting Machine

Features Of E6

Accurately place, manager, and track components with Smart Feeders

Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.

Our Advantage:

1. There is an adjustable track at the PCB entrance, which can clamp the board from 100*100--350*1200mm well

2. Fully automatic operation, saving manpower

3. The smallest mounting component: 0402

0.2mm Components 10 Nozzles 35000 CPH Pcb Mounting Machine0.2mm Components 10 Nozzles 35000 CPH Pcb Mounting Machine

TECHNICAL PARAMETER

E6T Technical Parameter
1 Length*Width*Height 1650mm*1200mm *1570mm
2 Total Weight 1200kg
3 PCB Length Width Max:500*350mm Min:100*100mm
4 PCB Thickness 0.5-5mm
5 PCB Clamping Electric clamping
6 Mounting Mode Group picking and separate placingseparate picking and separate placing
7 Software Windows 7
8 Display Touch screen
9 Input Device Keyboard,Mouse
10 No. of Camera 2 sets of imported camera
11 Position Camera Vision for the flight identification + MARK correction
12 Mounting repeat Precision ±0.02mm chip
13 Mounting Height <40mm(component max height 20mm)
14 Mounting Speed 35000 CPH(optimum)
15 Components LED chip,capacitors,resistors,IC,RGB,shaped components etc.
16 Components Speed 0.2mm
17 X,Y,Z Axies Driving Magnetic linear motor+servo motor
18 feeder stations 26PCS
19 No. of nozzles 10 nozzles

Finished products

It's suitable for power driver, electric boards,LED screen, bulb, down light, panel, strip, lamp, street light, ceiling light and etc

0.2mm Components 10 Nozzles 35000 CPH Pcb Mounting Machine

0.2mm Components 10 Nozzles 35000 CPH Pcb Mounting Machine
