Economical Stable Visual Position Bulb Making Machine
TECHNICAL PARAMETER
| RT-1 Technical Parameter |
| 1 | Length*Width*Height | 1650mm*1200mm *1570mm |
| 2 | Total Weight | 1200kg |
| 3 | PCB Length Width | Max:500*350mm Min:100*100mm |
| 4 | PCB Thickness | 0.5-5mm |
| 5 | PCB Clamping | Electric clamping |
| 6 | Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| 7 | Software | Windows 7 |
| 8 | Display | Touch screen |
| 9 | Input Device | Keyboard,Mouse |
| 10 | No. of Camera | 2 sets of imported camera |
| 11 | Position Camera | Vision for the flight identification + MARK correction |
| 12 | Mounting repeat Precision | ±0.02mm chip |
| 13 | Mounting Height | <40mm(component max height 20mm) |
| 14 | Mounting Speed | 40000 CPH(optimum) |
| 15 | Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
| 16 | Components Speed | 0.2mm |
| 17 | X,Y,Z Axies Driving | Magnetic linear motor+servo motor |
| 18 | feeder stations | 30PCS |
| 19 | No. of nozzles | 10 nozzles |

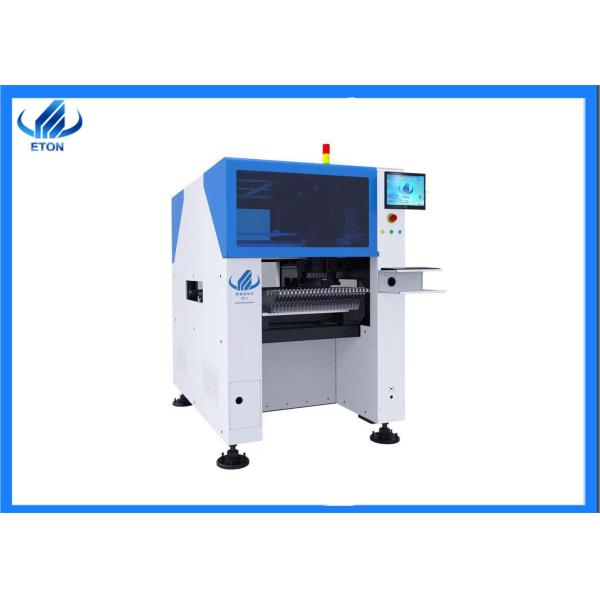

RT-1
Accurately place, manager, and track components with Smart Feeders
Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.
Application:
Especially DOB bulb, max mounting height 40mm can perfectly pick an place big components and shaped components on pcb
Also capable for power driver, electric boards,LED screen, down light, panel, strip, lamp, street light, ceiling light and etc.
Major products
8, 10, or 16 heads of multifunctioal pick and place machine
Automatic highspeed chip pick and place machine
Automatic glue dispenser machine
Lens mounter

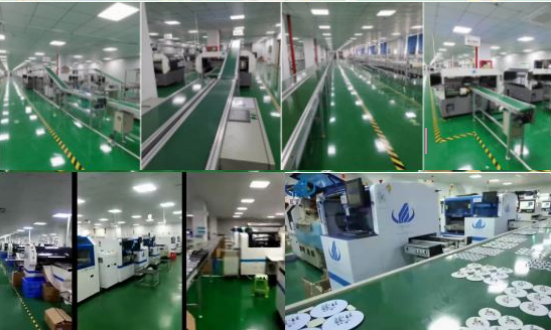

Project cases
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
Product Tags:
|
|
10 Nozzle 34 Feeders 40000 CPH Bulb Making Machine Images
|
